One of the most important parts of an engine assembly is the cylinder head. It holds the key to making power. It also offers the opportunity to make more horsepower. Cams, headers, carburetion can only go so far making horsepower without the cylinder head. However cylinder heads can be expensive but may be one place in the engine where spending the extra money may be worth it.
GENERAL BACKGROUND
We will leave most of the specific details on the cylinder heads, how to prep, etc. to the various engine chapters. Please refer to them earlier in this book. We will include cylinder head torque sequences and the various casting numbers for reference. In this chapter we will concentrate on photos and sketches showing various features of the heads.
6 CYLINDER ENGINE
All slant-six cylinder heads are interchangeable. There are no major differences between the various heads. The simplest way of identifying the various heads is by thehead casting number.
A. Casting Numbers
Head Casting Year Number --------------------------- '64-66 2206035 '67-74 2843169 '72-73 3614850 '72-74 3698995 '75-77 3698447 '78 3698447 '79-80 4104362 '81-82 4095778
Note: The '75 and newer heads no longer use spark plug tubes. It also uses the small "BL" series spark plugs and the tappets can't be removed with he head installed on the engine. The tappets can be removed with the head installed on the older engines.
B. Torque Sequence

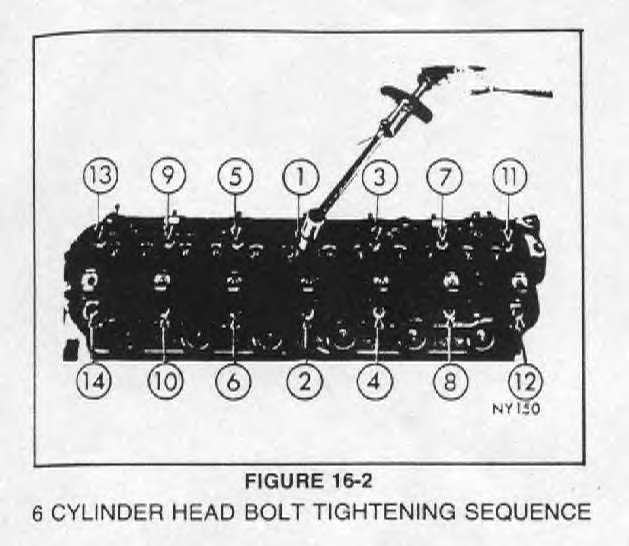

The chrome alloy cast iron cylinder head (Figure 16-1) is held in place by 14 bolts. Spark plugs are located at the wide edge of the combustion chambers and aluminum spark plug tubes serve as spark plug gaskets. Install cylinder head bolts. Starting at top center, tighten all cylinder head bolts to 50 foot-pounds in sequence (Figure 16-2). Repeat the procedure, retightening all cylinder head bolts to 65 foot-pounds.
Comparing Figure 16-3 and Figure 16-4 the difference in spark plug arrangement can be seen.
The outside edges of the 6 cylinder head's combustion chamber is machined or relieved next to the two valves as shown in Figure 16-5. If oversized valves are installed these reliefs should be enlarged.
IV.
A. ENGINE
There are basically only two different cylinder heads that have been used on the "LA" engines from 1964 to 1984 a small port 273-318 and a big port 340-360. There have been only three different valve combinations in these heads: one for the 273 and 318 with 1.78" intake and 1.50" exhaust; one for the 1968-1971 340 with 2.02" intake and 1.60" exhaust; and one for the 360 and the 1972-1973 340 with 1.88" intake and 1.60" exhaust.
A. Casting Numbers
Casting Year Engine Number ----------------------------------------------------- 1964-1965 273 2465315 1966 273 2536178 1967 273/318 2658920 1968-1971 318 2843675 1968-1971 340 2531894 1970 340-6 MI. T/A 3418915 1971 360 3418915 1972 318 2843675 1972 340/360 3671587 1973-1974 318 2843675 1973-1974 340/360 3671587 1973 360 w/air pump 3671587 1975 318 3769973 1975 360 3769974 1976 318 3769973 1976 360 3671587-3769974 1977-1979 318 4027163-4027593 360 4027596-4071051 1980 318 4027163-4027593 360 4027596-4071051 1981-82 318-std 4027163-4027593 318 H. P. 4027596-4071051
