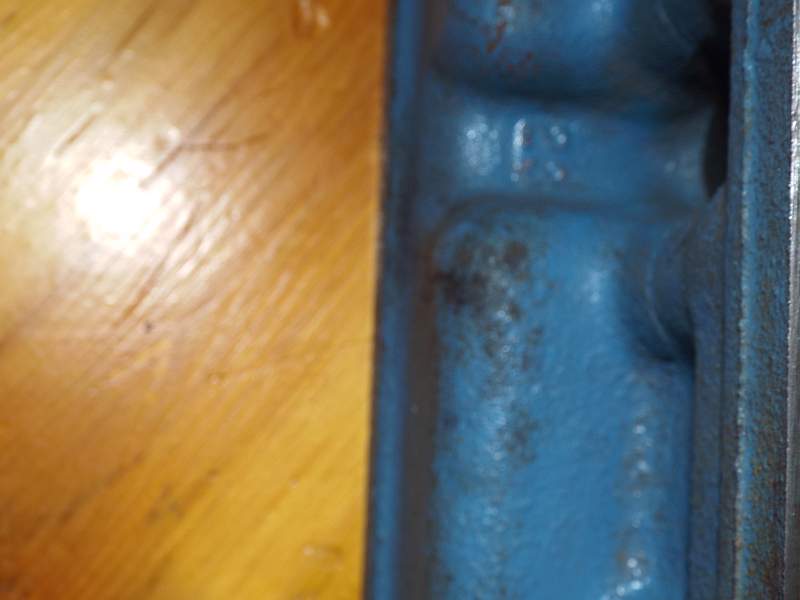

Here's a number "9" cast into the head. Probably coincides with the -9 at the end of the casting number I would just "guess".
| Attachments: |
|
SLANT HEAD 9.jpg [ 113.74 KiB | Viewed 3565 times ] |
| Slant Six Forum https://slantsix.org/forum/ |
|
| Closed chamber head.... https://slantsix.org/forum/viewtopic.php?t=65770 |
Page 5 of 9 |
| Author: | StrokerScamp [ Sun Feb 14, 2021 4:11 pm ] | ||
| Post subject: | Re: Closed chamber head.... | ||
Here's a number "9" cast into the head. Probably coincides with the -9 at the end of the casting number I would just "guess".
|
|||
| Author: | StrokerScamp [ Sun Feb 14, 2021 4:13 pm ] | ||
| Post subject: | Re: Closed chamber head.... | ||
A "23" cast into the head just in front of a spark plug hole. Many apologies for the poor quality.
|
|||
| Author: | StrokerScamp [ Sun Feb 14, 2021 4:15 pm ] | ||
| Post subject: | Re: Closed chamber head.... | ||
Now, this mark could be interesting. It's a blue ink stamping. I cannot make out what it says, even with a magnifying glass. It appears to begin with an "A" but that's about all I can tell. It is about as long a an "AAWJ"stamp would be, but I cannot see them both casting and stamping THAT, so I think it's something different.
|
|||
| Author: | StrokerScamp [ Sun Feb 14, 2021 4:18 pm ] | ||
| Post subject: | Re: Closed chamber head.... | ||
Another mark and it's an interesting one as well. At first, I thought it was a Roman numeral II, but looking at the picture, it appears more like a "77" stamped with a line underneath. That would make sense, since the head supposedly came from a 1977 Dodge Aspen.
|
|||
| Author: | StrokerScamp [ Sun Feb 14, 2021 4:21 pm ] | ||
| Post subject: | Re: Closed chamber head.... | ||
And the last mark, another cast in "9" on the bottom of the head. Again, probably coincides with the -9 at the end of the casting number. That's it as far as any castings or stampings. Maybe someone has seen that blue stamp before and can identify it. It's going to be a bit before this goes to the machine shop. If anyone would like any pictures of the blue stamp from another angle, let me know. I'm sure it will come off once the shop cleans it.
|
|||
| Author: | StrokerScamp [ Sun Feb 14, 2021 5:11 pm ] |
| Post subject: | Re: Closed chamber head.... |
Sorry yall. I just ain't gonna get the port and chamber numbers today. It's just too dang cold outside. I'll get them measured and post results soon. Rob |
|
| Author: | emsvitil [ Sun Feb 14, 2021 5:28 pm ] |
| Post subject: | Re: Closed chamber head.... |
The 'Blue Stamp' Play with the photo in a photo editor. You may find a setting that brings it out so you can see what it is. And strangely enough, sometimes going out of focus helps......... |
|
| Author: | StrokerScamp [ Sun Feb 14, 2021 9:31 pm ] |
| Post subject: | Re: Closed chamber head.... |
Quote: The 'Blue Stamp'
Gosh, I'm just "not that smart". lol Maybe one of yall can mess around with it. I don't really have a program that'll do that. I messed with photoshop in an older computer years ago and it blew my mind. lol
Play with the photo in a photo editor. You may find a setting that brings it out so you can see what it is. And strangely enough, sometimes going out of focus helps......... |
|
| Author: | StrokerScamp [ Mon Feb 15, 2021 6:51 am ] |
| Post subject: | Re: Closed chamber head.... |
Got the head set up and leveled last night, then realized I didn't have any tapered seat spark plugs. So goin to town in a few to get some tapered seat sparkum plugs and will post results in a bit. |
|
| Author: | and739 [ Mon Feb 15, 2021 7:06 am ] |
| Post subject: | Re: Closed chamber head.... |
Quote: Quote: The 'Blue Stamp'
Gosh, I'm just "not that smart". lol Maybe one of yall can mess around with it. I don't really have a program that'll do that. I messed with photoshop in an older computer years ago and it blew my mind. lolPlay with the photo in a photo editor. You may find a setting that brings it out so you can see what it is. And strangely enough, sometimes going out of focus helps......... The result ws pretty amazing: Attachment: IMG_4874.jpg [ 37.53 KiB | Viewed 3355 times ] |
|
| Author: | StrokerScamp [ Mon Feb 15, 2021 7:27 am ] |
| Post subject: | Re: Closed chamber head.... |
Quote: Quote: Quote: The 'Blue Stamp'
Gosh, I'm just "not that smart". lol Maybe one of yall can mess around with it. I don't really have a program that'll do that. I messed with photoshop in an older computer years ago and it blew my mind. lolPlay with the photo in a photo editor. You may find a setting that brings it out so you can see what it is. And strangely enough, sometimes going out of focus helps......... The result ws pretty amazing: IMG_4874.jpg I never could get the "A" that you mentioned to become apparent to me, but I wasn't expecting this either! |
|
| Author: | and739 [ Mon Feb 15, 2021 8:10 am ] |
| Post subject: | Re: Closed chamber head.... |
Quote: Maybe I'm blind but I still can't tell what it says. lol Here's my original edit and a highlighted copy. Attachment: IMG_4874.jpg [ 37.53 KiB | Viewed 3326 times ] Attachment: IMG_4874 copy.jpg [ 38.73 KiB | Viewed 3326 times ] |
|
| Author: | StrokerScamp [ Mon Feb 15, 2021 10:20 am ] |
| Post subject: | Re: Closed chamber head.... |
Got some numbers. Chamber volume - 56CC's Intake port - 87CC's Exhaust port - 101CC's Is it common for the exhaust to be larger than the intake? Measured each twice, so I duplicated. |
|
| Author: | StrokerScamp [ Mon Feb 15, 2021 10:22 am ] |
| Post subject: | Re: Closed chamber head.... |
Quote: Quote: Maybe I'm blind but I still can't tell what it says. lol Here's my original edit and a highlighted copy. IMG_4874.jpgIMG_4874 copy.jpg After seeing this, the "CC" mark stands out, for me anyway, in your original unedited pic. I really appreciate your efforts! |
|
| Author: | StrokerScamp [ Mon Feb 15, 2021 11:15 am ] |
| Post subject: | Re: Closed chamber head.... |
Those numbers just made no sense, so I went back and remeasured. Three times. I don't know how I screwed the first measurement up. I've been up all night.....maybe that's it. lol Intake -95CC's Exhaust - 64CC's That sounds a little more believable. |
|
